up to 12 kg animal imaging

The MRS*PET/CT 220 is a floor standing preclinical system. This PET/CT is designed for animal imaging up to 12 kg. The system has a bore size of 290 mm and the axial field of view can be extended up to 600 mm.

  1. This  PET/CT is based on the MRS*CT 120 and the  MRS*PET 220.
  2. The PET system has continuous detectors with a high resolution across the entire field of view (True DOI technology)
  3. Field of view: Axial ≤ 202mm , transaxial 220 mm, Inner diameter 290 mm

See all MRS*PET/CT models

System Details

Main Specifications

Animal type Up to 12 kg animals (shape depending)
PET/CT System type Floor stand
PET component MRS*PET 220
CT component MRS*CT 220

PET Specifications

Inner diameter & transaxial FOV (mm)  290 mm (ID) & 220 mm (tFOV)
Axial FOV (mm) 206.0 mm
Extended axial FOV (mm) 600.0 mm
PMT & Detectors configuration Silicon PM, Continuous detectors
Crystal material & Thickness (mm) Double Layers, LYSO/LYSO, 10 mm
Spatial Resolution with 3D OSEM (mm)  ≤1.3 mm
Spatial Resolutions with FBP (mm) 1.8 mm
Depth of Interaction (DOI) Yes – true DOI
Sensitivity  7.5%
Average Energy Resolutions (%) 22%

CT Specifications

Power Output/Tube (W) 39 W
X-ray tube Voltage Range 40-90 kVp or 130 kVp
X-ray tube Current Range  0.3 mA
Detector Pixel Matrix 3096 x 3100
Magnification  1.4
Spatial Resolution  80 μm
Voxel size Resolution 40 μm
Low does system Yes

Dimensions and weight with animal table

Total Weight PET/CT 1175 kg
PET/CT Dimensions 1940 mm (h) x 1660 mm (w) x 3010 mm (l)
Overview PET/CT technology

MRS*CLIP-ON Technology for PET/MR & PET/CT

MRS*PET/CT’s are based on the MRS*PET CLIP-ON technology. It is a unique plug and play concept making the same PET component compatible with CT and MR up to 9.4T. This modular approach offers significant advantages in efficiency and workflow, and most importantly, considerably reduces the investment for the research institute.

PET Technology: True Depth Of Interaction (DOI)

The MRS*PET for small animal imaging uses the latest silicon photomultiplier (SiPM) technology. The detector assembly (crystal/ SiPM) allows true DOI (depth of interaction) with two pixelated layers of scintillator crystals with different matrices. This design enables the MR SOLUTIONS PET module to reach under 0.8mm resolution.

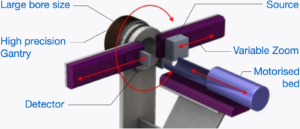

CT Technology with variable zoom and dual energy

MRS*PET/CT 80 and MRS*PET/CT 120 have a variable zoom allowing high resolution up to 5μm. These systems are suitable for both in-vivo and ex-vivo applications.

Animal Handling and monitoring

MRS*PET/CT’s use advanced animal handling and animal monitoring systems. Much more than a simple animal bed for preclinical imagers, the system provides a well-controlled environment for handling lab animals and plays a critical role in obtaining accurate and reproducible imaging results.

Preclinical Scan: Multimodality imaging Software

Preclinical Scan is the multimodality interface for preclinical imaging. Under one interface users have access to all MRI functionalities such as adjusting MRI pulse sequences parameters, but also have access to the PET, SPECT and CT extended functionalities.We have designed the graphical user interface to be friendly and easy to set up, even for the new user. For the advanced user, real-time optimisation and advanced functionalities are available. Preclinical Scan software can be configured with different levels of access depending on the experience of designated users.Learn More
